Strands Siberia Night Ranger Driving Light / 7" XP Version
Strands Siberia Night Ranger Driving Light / 7" XP Version
Strands Siberia Night Ranger Driving Light / 9" XP Version
The best selling Strands Night Ranger LED Driving Lamp has been upgraded with this new XP Version. So what are the main differences?
-
Two Main Beam Options:
- E-Approved Mode: When the main beam is activated, the main beam has 1540 actual Lumens
- Xperience Mode: When you flash the headlights 3 times, Xperience Mode kicks in and delivers an outstanding 5,710 actual lumens
- Yellow Position Light - Stands out more than the Amber on the standard model.
- Hello Function: Flash the headlights twice and the position light flashes dynamically (video below)
- Upgraded Paintwork: New powder coating is even more resistant to dirt, salt and water.
>>> Click here to view the installation manual <<<
With its 1540 / 5710 incredible actual lumens, the Siberia XP 7” will light up the darkest night and most challenging roads. This updated driving light has an extended beam pattern with E-mode and Xperience-mode. This results in a range of 342 / 662 meters, ensuring high forward visibility.
The XP 7” also features a new yellow and white position light and Hello function. Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the hassle of connecting cables.
It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10.
Strands Siberia XP Night Ranger 7" Specifications:
General Information
- Unit: PCS
- Voltage: 9-40V DC
-
Power Consumption:
- E-mode: 22W
- Xperience mode: 77W
- Position Light (White/Yellow): 5.2W each
Functions
- High beam
- White and yellow position lights
- Separate "Hello" function for position lights
Performance
- Theoretical Lumen: 6,700 lm
-
Actual Lumen:
- E-mode: 1,540 lm
- Xperience mode: 5,710 lm
-
1 LUX Range:
- E-mode: 342m
- Xperience mode: 662m
- Color Temperature: 5700K
- Beam Pattern: Extended Beam
Construction & Durability
- Housing Material: Aluminium (Black)
- Lens Material: Polycarbonate (Clear)
- Bracket Material: Stainless steel
- IP Class: IP68/IP69K
- Operating Temperature: -30°C to +65°C

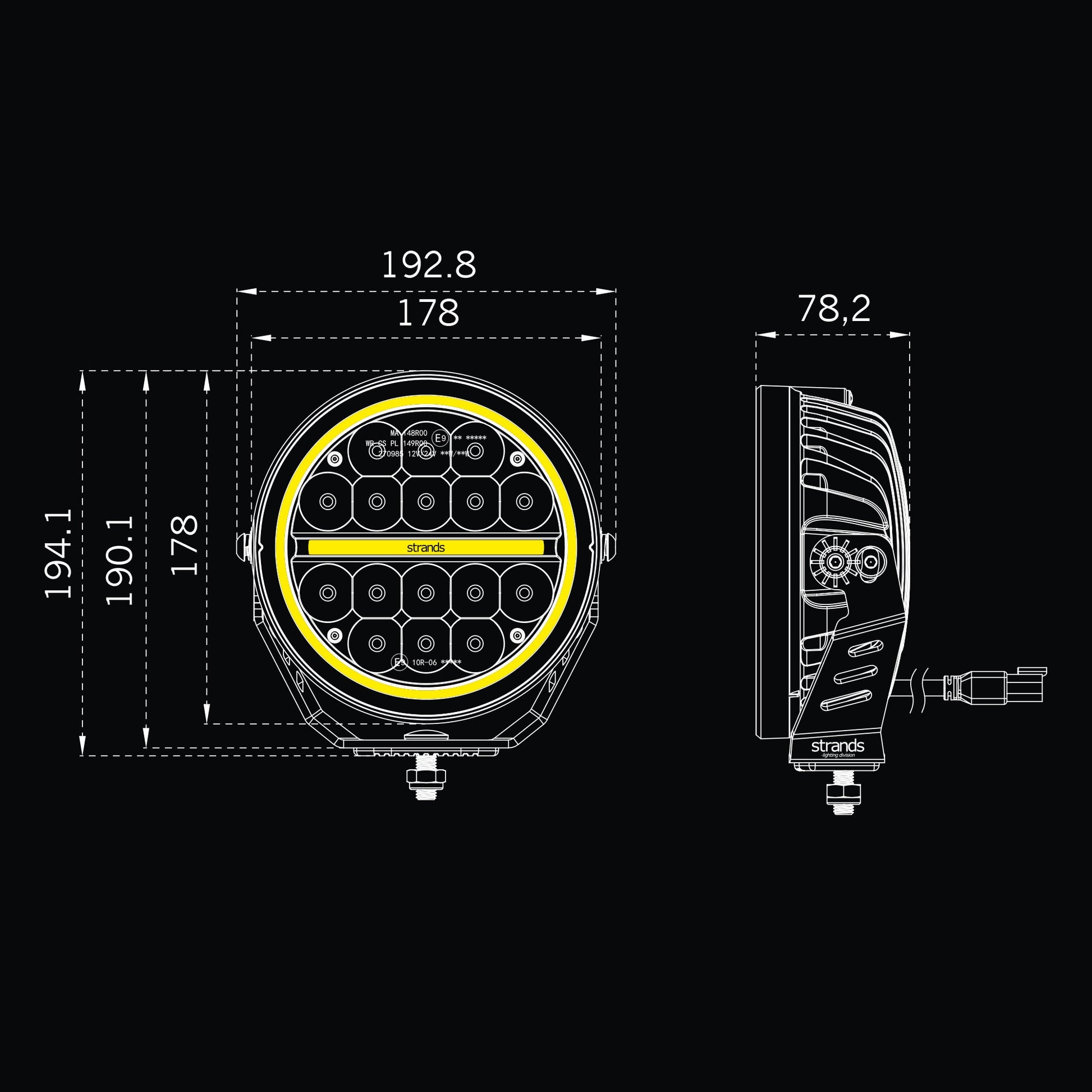

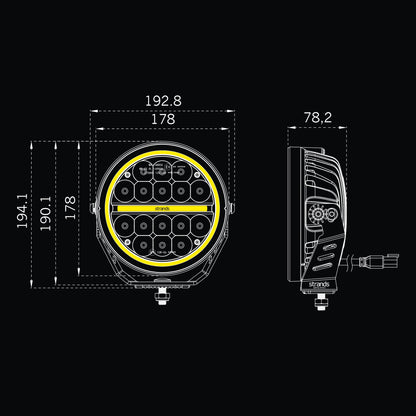

Dimensions
- Length: 178mm
- Depth: 78.2mm
-
Height:
- Without bracket: 178mm
- With bracket: 194.1mm
- Diameter: 178mm
Certifications & Standards
- E-Approved: Yes
-
Regulations:
- ECE R148 (R7)
- ECE R149 (R112)
- Reference Number: 20
- EMC: ECE R10
Connection Details
- Connector Type: DT-4
- Cable Length: 150mm
