Compact LED Beacon with Sync Function

This LED Beacon can be syncronised with other identical beacons and these LED Hazard Warning Lamps for a consistant flash pattern around the vehicle. See the video to see them in action.

• Application of 9 CREE LED diodes

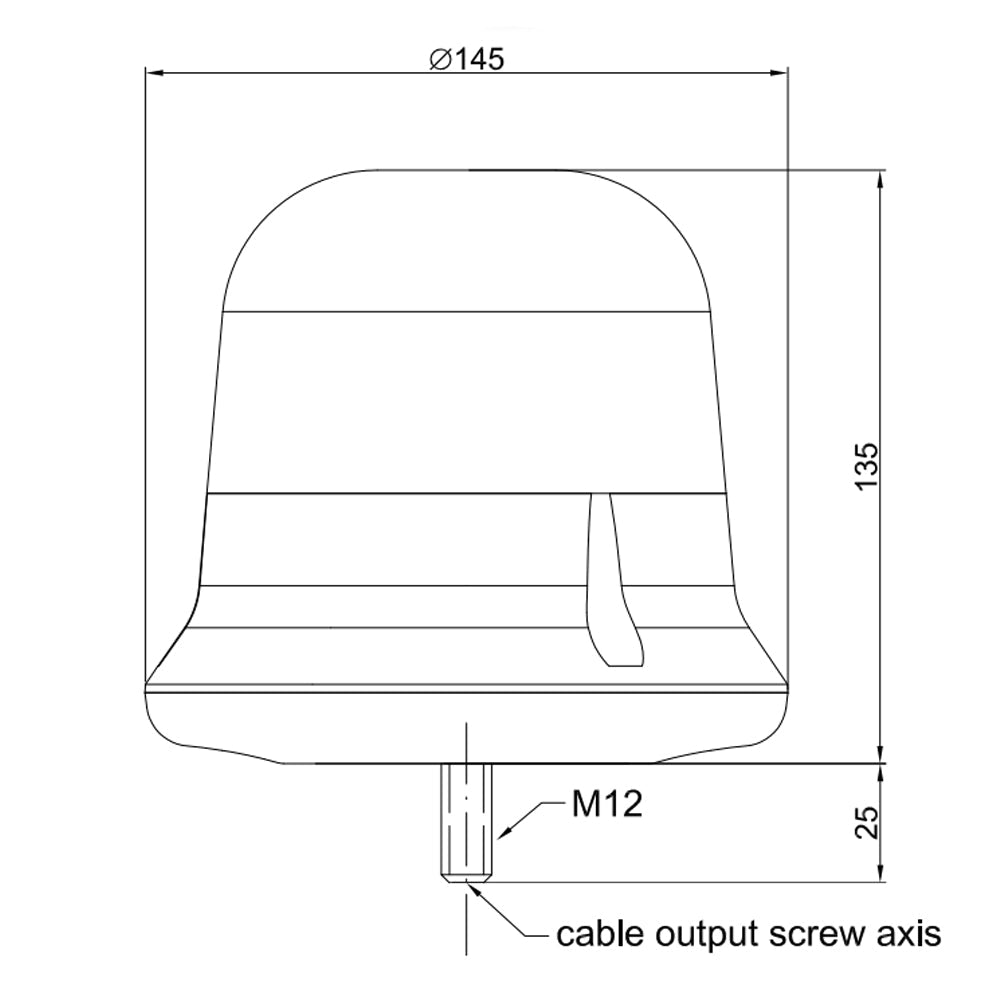

• Dimensions: 135 x 145mm
• Fixing: Single M12 Bolt
• Universal supply votlage 12 – 55V
• The lamp is completely waterproof
• Power consumption: 12V/24V/48V
• Peak power consumption: 1,2A/0,6A/0,32A, average power consumption: 0,5A/0,25A/0,13A
• Peak/average rated power: 15W/6W
• Special warning lamp approval compliant with ECE Regulation 65 (TA1)
• Flash frequency: f = 2,0 Hz  - Single flash - See video
• ElectroMagnetic Compatibility – EMC certificate
• Full waterproofness (IP68)
• Shock-resistance – IK
• Operating temperaturę -40°C to +55°C
• Reverse polarity protection
• GROUND (-) white wire; PLUS (+) black wire

Sync this beacon with Hazard Warning Light 200 and Hazard Warning Light 210
